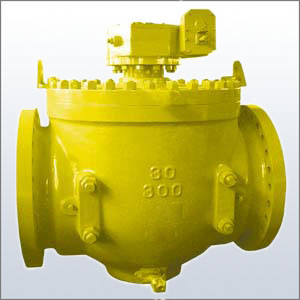

API6D Casted Trunnion Amounted Ball, Top-entry
Design standard
|
Basic standard: |
API 6D, ASME B16.34, BS5351, API 608, MSS SP-72 |
|
Flange connection dimesion: |
ASME B16.5, ASME B16.47, DIN2501 |
|
Butt welding connection dimension: |
ASME B16.25 |
|
Face-to-face dimension: |
Manufacturer STD |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 6D, API 598, API 607/6FA |
Product range
|
Size: |
2" ~ 28" |
|
Rating: |
ANSI |
|
Body Materials: |
Carbon steel, Stainless steel |
|
Trim: |
A105+ENP, 13Cr, F304, F316 etc. |
|
Operation: |
Wrench/Lever, Gear, Pneumatic operator |
Feature
Full/Reduce port, Top-entry, Fire safe design, Double block & bleed, Emergency sealant injection, Cavity pressure self relief, Blowout-proof stem, Anti-static, Optional ISO 5211 top flange etc.
Application
On shore Oil & Gas, Off shore Oil & Gas, Refinery, Chemical, Petrochemical, Power plant, etc.
