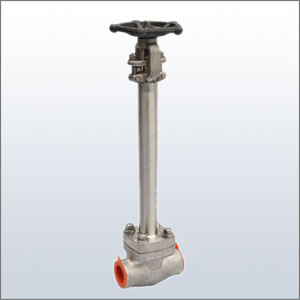

Forged Cryogenic Gate
Design standard:
Basic standard: |
API 602, ASME B16.34, BS5352 |
Flange connection dimesion: |
ASME B16.5 |
Butt welding connection dimension: |
ASME B16.25(BM), ASME B16.11 (SW) |
Face-to-face dimension: |
ASME B16.10, MTD for SW end , NPT end and BW end |
Pressure-Temperature rating: |
ASME B16.34 |
Test: |
API 598 |
Product range:
Size: |
1/2’’-2’’ |
Rating: |
ANSI |
Body Materials: |
Stainless steel (A |
Trim: |
Per API 600 |
Operation: |
Handwheel |
Feature:
Plug disc , outside screw & yoke, bolt bonnet, extended bonnet, Integral seat etc..
Application:
Cryogenic service(Temperature
