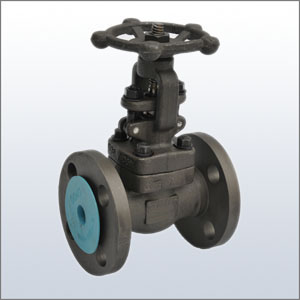

API602 Forged Gate, OS&Y, BB
Design standard
Basic standard: |
API 602, BS5352, ASME B16.34 |
Flange connection dimesion: |
ASME B16.5 |
Butt welding connection dimension(BW): |
ASME B16.25 |
Socket welding connetiong dimension(SW): |
ASME B16.11 |
Threaded end dimension(NPT): |
ASME B |
Face-to-face dimension: |
ASME B16.10, MTD for SW end , NPT end and BW end |
Pressure-Temperature rating: |
ASME B16.34 |
Test: |
API 598 |
Product range
Size: |
1/ |
Rating |
ANSI |
Body Materials: |
Forged Carbon Steel, Forged Stainless Steel, Forged Alloy Steel, Forged Duplex Steel |
Trim: |
Per API 600 |
Operation: |
Handwheel |
Feature
Solid wedge , outside screw & yoke, bolt bonnet, welded seat etc..
Application
Refinery, Petrochemical, Power plant, General Industry etc.
