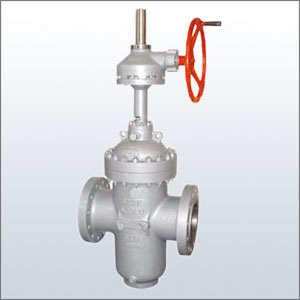

API 6D Casted Slab Gate, Single Disc
Design standard:
Basic standard: |
API 6D, ASME B16.34 |
Flange connection dimesion: |
ASME B16.5, ASME B16.47 |
Butt welding connection dimension: |
ASME B16.10, API 6D |
Face-to-face dimension: |
ASME B16.34 |
Pressure-Temperature rating: |
ASME B16.34 |
Test: |
API 598, API6D |
Product range:
Size: |
2" ~48" |
Rating: |
ANSI 150lbs~900lbs |
Body Materials: |
Carbon Steel, Stainless Steel |
Trim: |
Soft seal, Metal seal |
Operation: |
Gear, Motor, Gas over oil operator |
Feature:
Fire safe design, Slab gate or Expanding gate, Double block & bleed , Self cavity relief, Emergency Sealant injection, with/without through conduit etc.
Application:
oil & gas pipeline service.
