Gate Valves

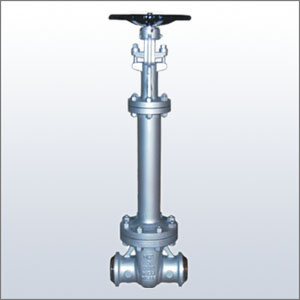

API600, Casted Bellow seal gate valves

API600 Casted Gate, OS&Y, Bellow sealed

Design standard

Basic standard:	API 600, ASME B16.34
Butt welding connection dimension:	ASME B16.25
Face-to-face dimension:	ASME B16.10, EN558
Pressure-Temperature rating:	ASME B16.34
Test:	API 598, BS 6755, ASME B16.34

Product range

Size:	2’’-12’’
Rating:	ANSI 150lbs ~ 600lbs
Body Materials:	Carbon Steel, Stainless Steel
Trim:	Per API 600
Operation:	Handwheel, Gear, Motor

Feature

Flexible wedge, bolted bonnet, outside screw & yoke, Bellow sealed, formed bellow, Integral /welded seat , zero stem leakage, minimum maintenance cost , 10,000 cycles bellow without failure etc；

Application

Chemical, Refinery, Petrochemical, Power plant, General industry.
