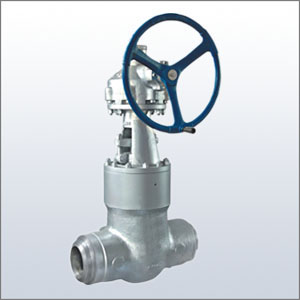

API600 Casted Gate, OS&Y, PSB
Design standard
Basic standard: |
API 600, BS1414, ASME B16.34 |
Flange connection dimesion: |
ASME B16.5 |
Butt welding connection dimension: |
ASME B16.25 |
Face-to-face dimension: |
ASME B16.10, EN558 |
Pressure-Temperature rating: |
ASME B16.34 |
Test: |
API 598, BS 6755, ASME B16.34 |
Product range
Size: |
|
Rating: |
ANSI |
Body Materials: |
Carbon Steel, Stainless Steel, Alloy Steel |
Trim: |
Per API 600 |
Operation: |
Handwheel, Gear, Motor |
Feature
Flexible wedge, outside screw & yoke, pressure seal bonnet, welded seat, Stellited seating surface, Optional by-pass design etc.
Application
Nuclear and fossil fuel power plant, bolier plant etc.
