Gate Valves

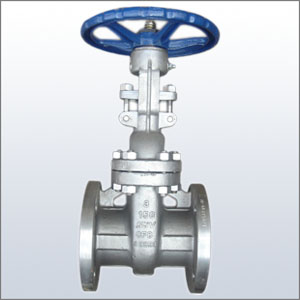

API603 Casted Stainless Steel Gate

Design standard:

Basic standard:	API 603，ASME B16.34
Flange connection dimesion:	ASME B16.5, ASME B16.47
Butt welding connection dimension:	ASME B16.25
Face-to-face dimension:	ASME B16.10, EN558
Pressure-Temperature rating:	ASME B16.34
Test:	API 598, BS 6755

Product range:

Size:	1/2’’-24’’
Rating:	ANSI 150lbs ~ 300lbs
Body Materials:	Stainless Steel(A351 CF8M, CF8, CF3M, CF3)
Trim:	Stainless Steel
Operation:	Handwheel, Gear, Motor, Pneumatic

Feature:

Flexible wedge, outside screw & yoke, bolt bonnet, integral seat etc

Application:

Chemical, Food, General Industry etc.
