Globe Valves

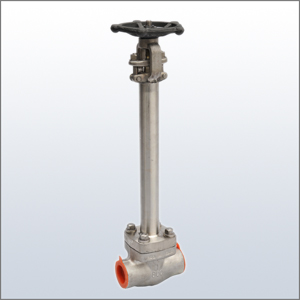

API602 Forged Cryogenic Globe, Bolted Bonnet

API602/BS5352 Forged Cryogenic Globe, Bolted Bonnet

Design standard

Basic standard:	API 602, BS5352, ASME B16.34
Flange connection dimesion:	ASME B16.5
Butt welding connection dimension(BW):	ASME B16.25
Socket welding connetiong dimension(SW):	ASME B16.11
Threaded end dimension(NPT):	ASME B1.20.1
Face-to-face dimension:	ASME B16.10, MTD for SW end , NPT end and BW end
Pressure-Temperature rating:	ASME B16.34
Bonnet extension:	BS 6364
Test:	API 598, BS 6364

Product range

Size:	1/2’’-2’’
Rating:	ANSI 150lbs ~ 800lbs
Body Materials:	Stainless steel (A182 F316, F304, F316L, F304L etc.), LF3, LF2 etc.
Trim:	Per API 600
Operation:	Handwheel

Feature:

Plug disc , outside screw & yoke, bolt bonnet, extended bonnet, welded seat etc..

Application:

Cryogenic service(Temperature -196℃/-101℃/-46℃)
