Product Show

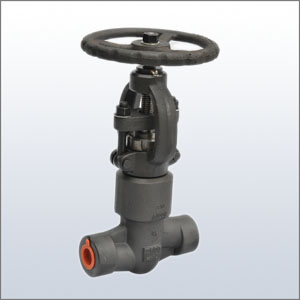

API602 Forged Globe, Pressure Sealed Bonnet
Globe Valves
API602 Forged Globe, Pressure Sealed Bonnet
API602/BS5352 Forged Globe, Pressure Sealed Bonnet
Design standard
|
Basic standard: |
API 602, BS5352, ASME B16.34 |
|
Flange connection dimesion: |
ASME B16.5 |
|
Butt welding connection dimension(BW): |
ASME B16.25 |
|
Socket welding connetiong dimension(SW): |
ASME B16.11 |
|
Threaded end dimension(NPT): |
ASME B |
|
Face-to-face dimension: |
ASME B16.10, MTD for SW end , NPT end and BW end |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 598 |
Product range
|
Size: |
1/ |
|
Rating: |
ANSI |
|
Body Materials: |
Forged carbon steel, Forged stainless steel, Forged alloy steel, Forged duplex. |
|
Trim: |
Per API 600 |
|
Operation: |
Handwheel |
Feature:
Plug disc , outside screw & yoke, bolt bonnet, integral seat etc..
Application:
Chemical, Refinery, Petrochemical, Power plant, General industry.
