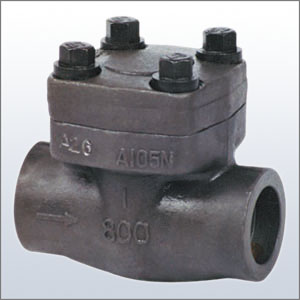

BS5352 Forged Swing Check Valve,Bolted cover
Check Valves
BS5352 Forged Swing Check Valve,Bolted cover
Design standard:
|
Basic standard: |
API 602, ASME B16.34, BS5352 |
|
Flange connection dimesion: |
ASME B16.5 |
|
Butt welding connection dimension(BW) |
ASME B16.25 |
|
Socket welding connetiong dimension(SW) |
ASME B16.11 |
|
Threaded end dimension(NPT) |
ASME B1.20.1 |
|
Face-to-face dimension: |
ASME B16.10, EN558, MTD for SW end and NPT end. |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 598 |
Product range:
|
Size: |
1/2＂ ~2＂ |
|
Rating: |
ANSI 150lbs~1500lbs |
|
Body Materials: |
Carbon Steel, Stainless Steel,Alloy steel, Duplex |
|
Trim: |
as per API600 |
|
Operation: |
Automatic |
Feature:
Bolted cover etc
Application:
Refinery, Petrochemical, Power plant, General Industry etc.
