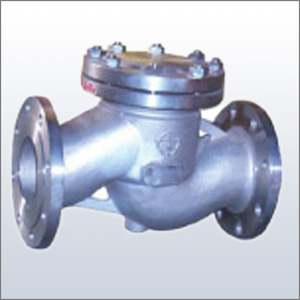

BS1868 Casted Horizontal Lift Check,Bolted Cover
Check Valves
BS1868 Casted Horizontal Lift Check,Bolted Cover
BS1868 Casted Horizontal Lift Check,Bolted Cover
Design standard:
|
Basic standard: |
BS1868, ASME B16.34 |
|
Flange connection dimesion: |
ASME B16.5, DIN 2501 |
|
Face-to-face dimension: |
ASME B16.10, EN558, DIN3202 |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 598 |
Product range:
|
Size: |
2＂ ~16＂ |
|
Rating: |
ANSI 150lbs~1500lbs |
|
Body Materials: |
Carbon Steel, Stainless Steel,Alloy steel, Duplex |
|
Trim: |
as per API600 |
|
Operation: |
Automatic |
Feature:
Bolted cover etc
Application:
Refinery, Petrochemical, Power plant, General Industry etc.
