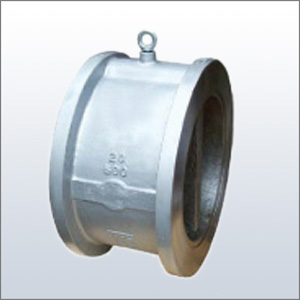

API594 Casted Wafer Check, Dual-plate
Design standard
Basic standard: |
API 594, ASME B16.34 |
Flange connection dimesion: |
ASME B16.5, ASME B16.47, DIN 2501 |
Face-to-face dimension: |
API594, API6D, EN558, DIN3202 |
Pressure-Temperature rating: |
ASME B16.34 |
Test: |
API 598, API6D |
Product range
Size: |
2" ~48" |
Rating : |
ANSI |
Body Materials: |
Carbon Steel, Stainless Steel,Alloy steel, Duplex |
Trim: |
Per API600 |
Operation: |
Automatic |
Feature
Wafer type, Dual-plated, Lugged/Non-lugged, retainerless etc.
Application
Refinery, Petrochemical, Power plant, General Industry etc.
