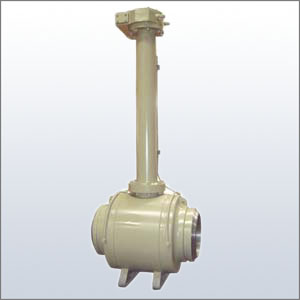

API6D Forged Trunnion Amounted Ball, Full-welded Body
API6D Forged Trunnion Amounted Ball, Full-welded Body
Design standard
|
Basic standard: |
API 6D, ASME B16.34, BS5351 |
|
Flange connection dimesion: |
ASME B16.5, ASME B16.47, DIN2501 |
|
Butt welding connection dimension: |
ASME B16.25 |
|
Face-to-face dimension: |
ASME B16.10, API 6D, EN558 |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 6D, API 598, BS 6755, API 607/6FA |
Product range
|
Size: |
2" ~ 32" |
|
Rating: |
ANSI |
|
Body Materials: |
Forged Carbon steel |
|
Trim: |
A105+ENP, 13Cr, F304, F316 etc. |
|
Operation: |
Wrench/Lever, Gear, Pneumatic operator |
Feature
Full/Reduce port, full welded body, soft seated, Fire safe design, Blowout-proof stem, Double block & bleed, Emergency sealant injection, Cavity pressure self relief, Anti-static, Optional locking device, Optional ISO 5211 top flange etc.
Application
On shore Oil & Gas, Off shore Oil & Gas, Refinery, Chemical, Petrochemical, Power plant etc.
