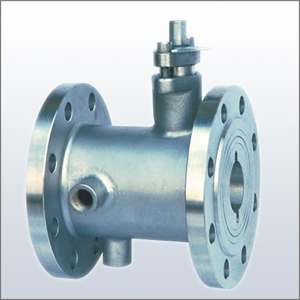

ASME B16.34 Casted Floating Ball, Jacketed Type
Ball Valves
ASME B16.34 Casted Floating Ball, Jacketed Type
ASME B16.34 Casted Floating Ball, Jacketed Type
Design standard:
|
Basic standard: |
API 6D, ASME B16.34, BS5351 |
|
Flange connection dimesion: |
ASME B16.5, DIN2501 |
|
Butt welding connection dimension: |
ASME B16.25 |
|
Face-to-face dimension: |
ASME B16.10, API 6D, EN558 |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 6D, API 598, BS 6755, API 607/6FA |
Product range:
|
Size: |
1/2" ~ 8" |
|
Rating: |
ANSI 150lb-300lbs |
|
Body Materials: |
Carbon steel, Stainless steel, |
|
Trim: |
F304, F316 etc. |
|
Operation: |
Wrench/Lever, Gear, Pneumatic operator |
Feature:
Full/Reduce port, floating type, Fire safe design, Blowout-proof stem, Anti-static, Optional locking device, Optional ISO 5211 top flange etc.
Application:
Refinery, Chemical, Petrochemical, Pharmaceutical etc.
