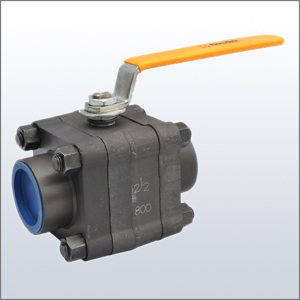

API6D Forged Floating Ball, Side-entry, 3PC
API6D/BS5351 Forged Floating Ball, Side-entry，3PC
Design standard:
|
Basic standard: |
BS5351, API 6D, ASME B16.34, |
|
Flange connection dimesion: |
ASME B16.5, DIN2501 |
|
Butt welding connection dimension: |
ASME B16.25 |
|
Face-to-face dimension: |
ASME B16.10, API 6D, EN558 |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 6D, API 598, BS 6755, API 607/6FA |
Product range:
|
Size: |
1/2" ~ 2 1/2" |
|
Rating: |
ANSI 150lb-1500lbs |
|
Body Materials: |
Forged Carbon steel, Forged Stainless steel, Forged Duplex |
|
Trim: |
A105+ENP, 13Cr, F304, F316 , F51etc |
|
Operation: |
Wrench/Lever, Gear, Pneumatic operator |
Feature:
Full/Reduce port, Fire safe design, Blowout-proof stem, Anti-static, Optional locking device, Optional ISO 5211 top flange etc.
Application:
Refinery, Chemical, Petrochemical, Power plant, Pharmaceutical etc.
