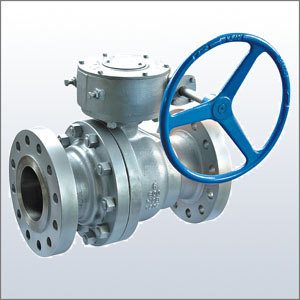

ASME B16.34 Casted Floating Ball, Side-entry & 2-PC Body
Ball Valves
ASME B16.34 Casted Floating Ball, Side-entry & 2-PC Body
ASME B16.34 Casted Floating Ball, Side-entry & 2-PC Body
Design standard
|
Basic standard: |
API 6D, ASME B16.34, BS5351, API 608, MSS SP-72 |
|
Flange connection dimesion: |
ASME B16.5, DIN2501 |
|
Butt welding connection dimension: |
ASME B16.25 |
|
Face-to-face dimension: |
ASME B16.10, API 6D, EN558 |
|
Pressure-Temperature rating: |
ASME B16.34 |
|
Test: |
API 6D, API 598, BS 6755, API 607 |
Product range
|
Size: |
1/2" ~ 12" |
|
Rating: |
ANSI |
|
Body Materials: |
Carbon steel, Stainless steel |
|
Trim: |
A105+ENP, 13Cr, F304, F316 etc. |
|
Operation: |
Wrench/Lever, Gear, Pneumatic operator |
Feature
Full/Reduce port, Fire safe design, Blowout-proof stem, Anti-static, Optional locking device,Optional ISO 5211 top flange etc.
Application
Refinery, Chemical, Petrochemical, Pharmaceutical, Food & Beverage etc.
