Plug Valves

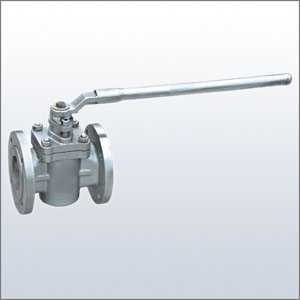

API6D Casted Non-lubricated Plug

Design standard

Basic standard:	API 6D, ASME B16.34, API599
Flange connection dimesion:	ASME B16.5
Butt welding connection dimension:	ASME B16.25
Face-to-face dimension:	ASME B16.10
Pressure-Temperature rating:	ASME B16.34
Test:	API 598, API6D, API 607/6FA
Structure	Short Pattern, Regular Pattern, Venturi Pattern Full Bore pattern

Product range:

Size:	1/2" ~ 12"
Rating:	ANSI 150lbs-600lbs
Body Materials::	Carbon steel, Stainless steel
Trim:	WCB, CF8, CF8M etc
Operation:	Wrench/lever, Gear, Pneumatic, Electric.

Feature:

PTFE seated, Blowout-proof stem, Anti-static etc.

Application:

Petroleum industry, general industry etc.
